Please post success or failure (and which vehicle) with EDC15M ECUs here

Working on our 53 plate ZR TD. Brought up 6 codes that cheap OBD readers didn't find, 2 of which came back after erasing so I've got some work to do!

Hello,

Works on Rover 25 2.0 TD 2001.
Show and erase those errors :

P1402 EGR Metering Orifice Restricted
P0601 Internal Control Module Memory Check Sum Error
P1215 Pedal Position Sensor C Circuit Low Input
P0215 Engine Shutoff Solenoid Malfunction
P1222 Traction Control Output Circuit Malfunction

Only the first two errors have came back.

Show all live datas as the picture in the pscan site shows.

Question : My "airflow" is 750mg/s and in the pscan.eu site the rover 45 2.0td works with more than 2000mg/s for the same engine speed. How to know which value is right ? Does it exist a list of reference values ?

regards,
al

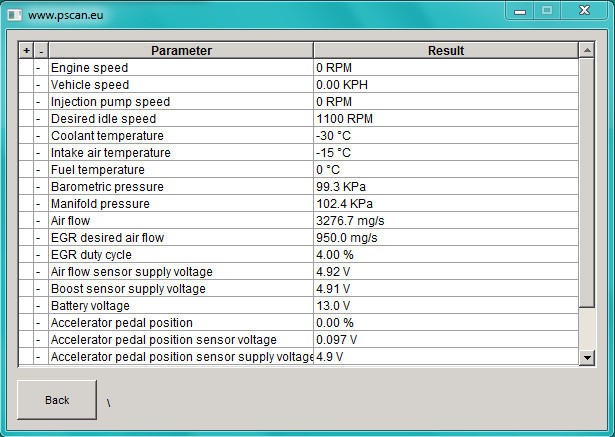

If you look at the live data shown on the website:-



Engine speed=0 RPM

so the airflow figure is clearly not real.

We don't have access to a real running EDC15M car, only an ECU on the bench so you will have to see if other people can compare their numbers with yours.
